Reconvolution events

This tutorial shows the basic building block of the reconvolution approach (see [1] and [2]) that is implemented in the PyntBCI library for analysing code-modulated responses. This tutorial generates an arbitrary code (here an m-sequence) and shows different kinds of event definitions.

References

[1]

Thielen, J., van den Broek, P., Farquhar, J., & Desain, P. (2015). Broad-Band visually evoked potentials: re(con)volution in brain-computer interfacing. PLOS ONE, 10(7), e0133797. DOI: https://doi.org/10.1371/journal.pone.0133797

[2]

Thielen, J., Marsman, P., Farquhar, J., & Desain, P. (2021). From full calibration to zero training for a code-modulated visual evoked potentials for brain–computer interface. Journal of Neural Engineering, 18(5), 056007. DOI: https://doi.org/10.1088/1741-2552/abecef

import matplotlib.pyplot as plt
import seaborn

import pyntbci

seaborn.set_context("paper", font_scale=1.5)

The stimulus

PyntBCI contains a stimulus module with several functions that create various well-known noise-codes. Here we generate an m-sequence.

# Generate an m-sequence
V = pyntbci.stimulus.make_m_sequence()
n_classes, n_samples = V.shape
print("V shape: ", V.shape, "(classes, samples)")

V shape:  (1, 63) (classes, samples)

The event matrix

In reconvolution, sequences are decomposed into individual events. Reconvolution then learns a separate evoked response for each of these events. The event definition can be manually set. An event that is commonly used is the dur (duration) event, which defines an event for each run-length of ones in a sequence. There are many other potential events that can be used, such as id (identity), on, off, onoff (on and off), re (rising edge), fe (falling edge), and refe (rising and falling edge, contrast). Here, we show what these decompositions look like in more detail.

events = pyntbci.utilities.EVENTS  # the event definitions
i_class = 0  # the class to visualize

for event in events:
    print(event)

    # Create event matrix
    E, events = pyntbci.utilities.event_matrix(V, event=event, onset_event=True)
    print("\tE shape:", E.shape, "(classes x events x samples)")
    print("\tEvents:", ", ".join([str(event) for event in events]))

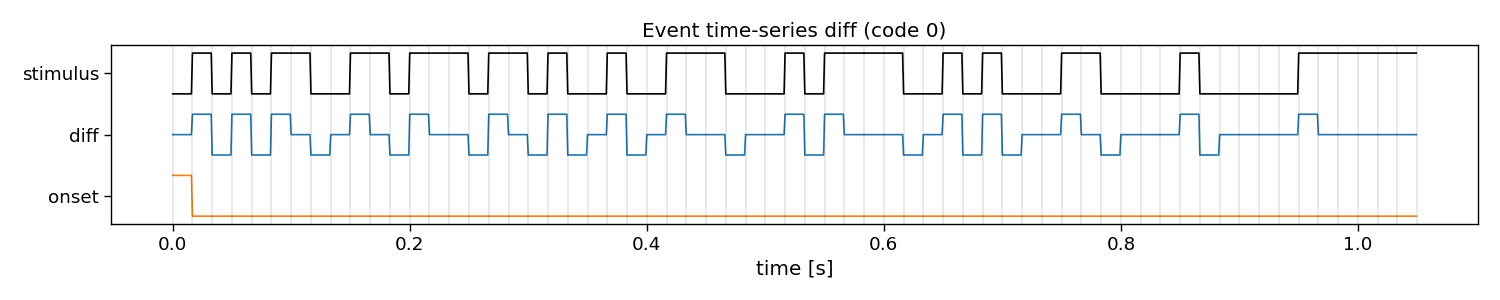

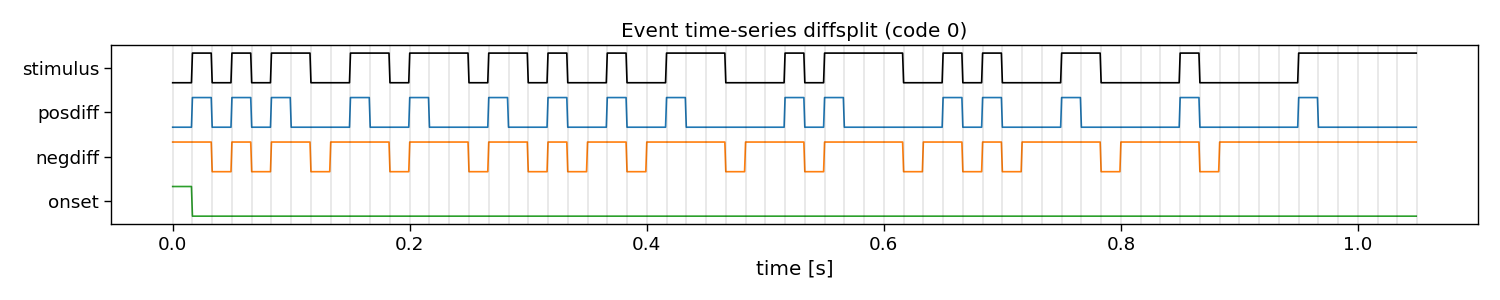

    # Visualize event time-series
    fig, ax = plt.subplots(1, 1, figsize=(15, 3))
    pyntbci.plotting.eventplot(V[i_class, :], E[i_class, :, :], fs=60, ax=ax, events=events)
    ax.set_title(f"Event time-series {event} (code {i_class})")
    plt.tight_layout()

# plt.show()

•
•
•
•
•
•
•
•

id
        E shape: (1, 2, 63) (classes x events x samples)
        Events: id, onset
on
        E shape: (1, 2, 63) (classes x events x samples)
        Events: on, onset
off
        E shape: (1, 2, 63) (classes x events x samples)
        Events: off, onset
onoff
        E shape: (1, 3, 63) (classes x events x samples)
        Events: on, off, onset
dur
        E shape: (1, 6, 63) (classes x events x samples)
        Events: 1, 2, 3, 4, 6, onset
re
        E shape: (1, 2, 63) (classes x events x samples)
        Events: rise, onset
fe
        E shape: (1, 2, 63) (classes x events x samples)
        Events: fall, onset
refe
        E shape: (1, 3, 63) (classes x events x samples)
        Events: rise, fall, onset
